If you can tell what’s wrong here, I feel sorry for you. I also feel sorry for me, because I have at least two of these. 🫠😞😭

#RJ45 #Cat6a #twistedpairs #T568B

An RJ45 connector with the clip facing up. The ends of all eight wires can be seen facing the camera. The top row is striped wires. The bottom row from left to right are brown, green, blue, orange.

Bijna volledig gepakt voor #why2026 camp en een van mijn dochters maakte ook mijn #nagels klaar om te netwerken. #T568B

8 vingers met gelakte nagels: wit/oranje, oranje, wit/groen, blauw, wit/blauw, groen, wit/bruin en bruin. De kleurvolgorde van de draadjes van een netwerkkabel in de T568B standaard.

@Sparky there's no valid reason to use #T568A nowadays, since even the shittiest #PoE-Injectors and #Switches do #AutoMDIX!

And with "shittiest" I mean those €5 8-Port 10/100M switches from Aperzon's trashbin!

#Cat8.1-Ethernet as per #T568B is the way to go, unless you can go with #OM5 or #OS2, then go with those #fiber standards!

twisted pair
https://www.furaffinity.net/view/59524109/

#furryart #t568b

creation date: January 14 2025

two clones of a blue anthropomorphic cat with red markings are twisting and fusing together in a loving embrace, suggesting a twisted pair cable. the background features a colour pattern reminiscent of the T568B wiring standard

@ricci I didn't have to do nearly as many and I was compelled to come up with this amusing mnemonic to ensure I did the colours right every time.
#t568B
#cat6

An intentionally terrible hacked meme featuring the faces of Viva La Dirt League's Bodger and Greg of Honeywood. A coloured mnemonic to remind me of the correct order for Cat6 cable crimping. It reads:
with orange
obsidian
we grind
blades
while blue
greg
warms brown
broth

This corresponds to:
white orange,
Orange,
White green,
Blue,
White blue,
Green,
White brown,
Brown

And is the order that untwisted cat6 wires are crimped into connectors in the T568B standard.

Picture also shows depictions of the mnemonic as bodger the blacksmith grinds blades and Greg warms broth

I'm about to start wiring my home for ethernet -- from scratch -- brand-new installation, no existing infrastructure. Which do I use?

(PS: I know this is not a consequential decision. I'm just curious what the internet thinks.)

#networking #ethernet #T568A #T568B #ANSI #TIA-568 #structuredcabling #IT #network #LAN

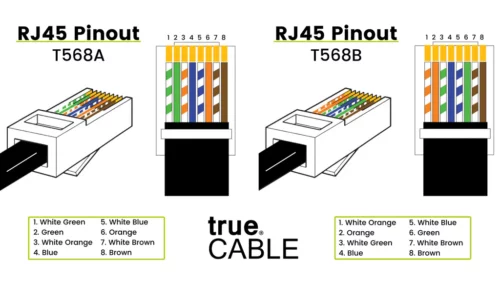

T568a vs T568b: Which To Use

With Orange ⚪️🍑
Obsidian 🍊
We GRind 🤍🍀
BLades 🥏
While BLue 🏳️🥶
GReg 💚
Warms BRown ❕🐻
BRoth 🐗
#cat6
#mnemonic
#t568b
